Industrial Blower Motor 37KW 3500RPM Brushless AC 3 Phase Permanent Magnet 1.1 Service Factor
Product Advantages
1. Permanent magnet synchronous motor is suitable for 3500RPM speed applications.
2. Air cooling design makes this motor more conveniently used in different applications.
3. These motors have the characteristics of high efficiency,high power/torque density,low noise and low vibration and so on.
Specifications
| Model type | SRPM290M8F37 |
| Voltage | 380V AC |
| Rated Power | 37KW |
| Rated Torque | 100.9N.m |
| Rated Speed | 3500rpm |
| Rated Current | Around 66A |
| Isolation | H |
| Pole Number | 8 |
| Cooling Method | Air Cooling |
Product Details
Main Materials
1. 220°C grade corona resistant varnished wire
2. Casing/Housing: Super strong Alloy shell (Stainless steel/alloy optional)
3. High grade NdFeB permanent magnet
4. NHN Insulation paper
Application
This motor can be used for Blowers and Fans
Packing
1. Wooden/paper carton optional (price will be differenert)
2. Most of our motors are customized, please confirm the carton size with our sales when all your requirement are confirmed.
Shipping direction
1. Sample order: our stock cargons L/T 1~3 days, customized 45~60 days
2. Mass production order: 15~25 days based on the quantity
3. By air: we normally take DHL/FEDEX/UPS/TNT or other door to door service
4. By sea: LCL/FCL are both ok.
FAQ
1. Can performanent magnet synchronous motor be used as generator?
Yes. Our motors can work as a generator.
2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.
3. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.
4. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation.
Product Tags:
|
|

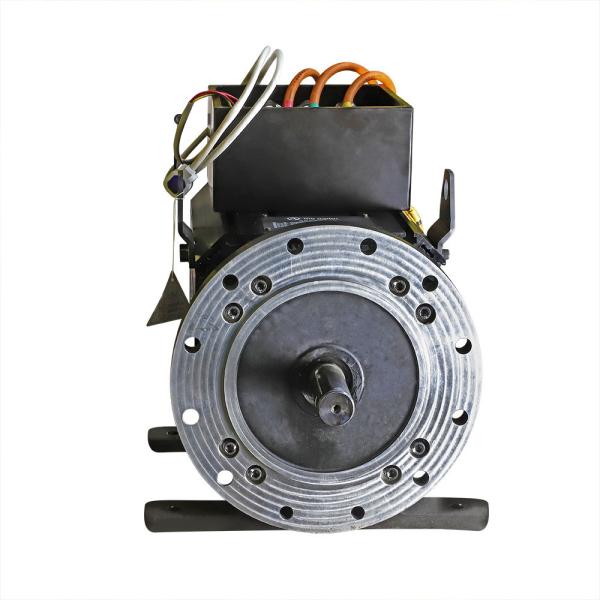

Ac 37KW 3500RPM 3 Phase Permanent Magnet Brushless Motor Images
|
